Product Overview

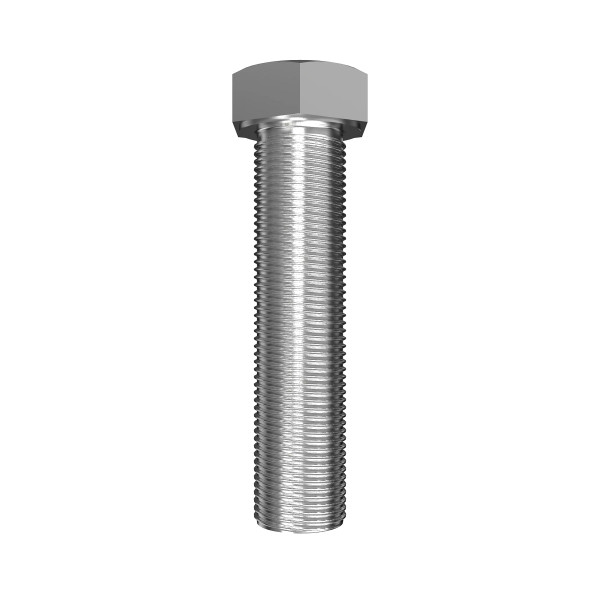

| Detailed Description: | SCREW, SPECIAL CAP |
| Part Weight: | 0.131(LB) |
| Specification | |
| Diameter | 0.375 IN |
| Thread | UNC2A |
| Length | 4.000 IN |
| Thread Length | 0.400 IN |
| Width Across Flats | 0.562 IN |
| Head Height | 0.234 IN |
| Material Grade | A17F |
| Finish | B |
| Note | A |
| Specification | |
| Diameter | 9.525 MM |
| Thread | UNC2A |
| Length | 101.600 MM |
| Thread Length | 10.160 MM |
| Width Across Flats | 14.275 MM |
| Head Height | 5.944 MM |
| Material Grade | A17F |
| Finish | B |
| Note | A |
| Part No. | Part Type | Description | Make | Machine | Model | NOTE |
|---|---|---|---|---|---|---|
| N281525 | Drill and Planter Parts | Cap Screw - Boot Attaching | John Deere | Air Drill, No Till | 1850 | |
| N281525 | Drill and Planter Parts | Cap Screw - Boot Attaching | John Deere | Grain Drill | 750 |
1850 - DRILL, AIR
1850 No-Till Air Drill - PC2510750 - DRILL, GRAIN
750 Series All-Till Grain Drill (North American Edition) - PC2246750A - DRILL
750A Drill ( -600526) European Edition - PC4266
