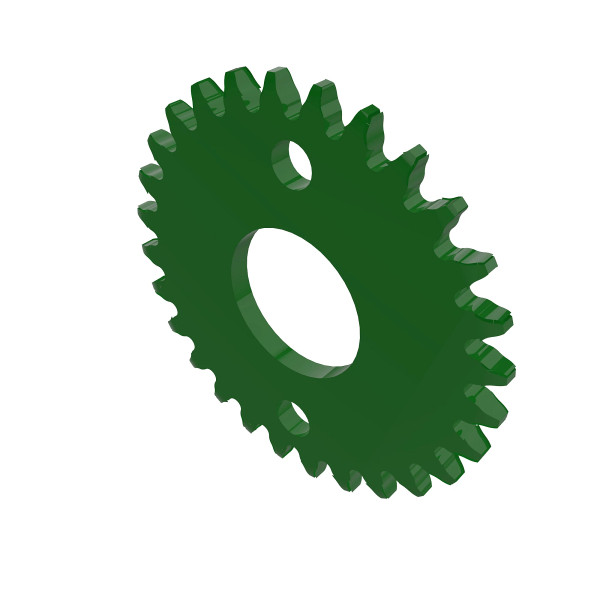

CHAIN SPROCKET, 28T - A50386

Write a Review
$42.52
SKU:
A50386
Weight:
1.65 LBS

Product Overview

Detailed Description:  CHAIN SPROCKET, 28T

Part Weight:  1.654(LB)
Package Quantity:  1
Package Dimensions:  Length: 9.50(IN)  Width: 8.50(IN)  Height: 0.32(IN)



Specification
Chain Number 50
Number of Teeth 28.000 UNITY
Bore Diameter 2.087 IN
Bore Detail Code R
Root Diameter or Outside Diameter 4.891 IN
Bolt Circle 3.819 IN
Bolt Hole 2.000 UNITY
Material 1020
Finish A
Note



Specification
Chain Number 50
Number of Teeth 28.000 UNITY
Bore Diameter 53.000 MM
Bore Detail Code R
Root Diameter or Outside Diameter 124.220 MM
Bolt Circle 97.000 MM
Bolt Hole 2.000 UNITY
Material 1020
Finish A
Note



1010 - PLANTER
1010 Max Planter (Mexican Edition) - PC60931025 - PLANTER
1025 Integral 2-Row Planter (Mexico Edition) - PC61401700 - PLANTER
1700 Integral Planter - PC2530TWIN ROW - PLANTER
1700 Twin Row Planter - PC110291700 - PLANTER
1700 Twin Row Planter - PC110291700TR - PLANTER
1700 Twin Row Planter - PC110291705 - PLANTER
1705 Integral Planter (S.N. 760101- ) - PC122291705 - PLANTER
1705 Twin Row Planter (S.N. 760101- ) - PC122301710 - PLANTER
1710 Vertical-Fold Planter - PC25311715 - PLANTER
1715 Vertical Fold Planter (S.N. 760101- 780999) - PC12231CCS - PLANTER
1720 CCS Stack-Fold Planter - PC9900CCS - CART, COMMODITY
1720 CCS Stack-Fold Planter - PC99001720 - CART, COMMODITY
1720 CCS Stack-Fold Planter - PC99001720 - PLANTER
1720 CCS Stack-Fold Planter - PC99001720 - PLANTER
1720 CCS Twin Row Planter - PC106781720 - PLANTER
1720 Stack-Fold Planter - PC2538CCS - PLANTER
1725 CCS Stack Fold Planter (S.N. 760101- ) - PC122331725 - PLANTER
1725 CCS Stack Fold Planter (S.N. 760101- ) - PC122331725 CCS - PLANTER
1725 CCS Twin Row Planter (S.N. 760101 - 785999) - PC122341725 - PLANTER
1725 Stack Fold Planter (S.N. 760101- ) - PC122321730 - PLANTER
1730 Narrow Row Integral Planter - PC25341735 - PLANTER
1735 Narrow Row Integral Planter (S.N. 760101- ) - PC122351740 - PLANTER
1740 MaxEmerge XP Planter (Mexico) - PC60981745 - PLANTER
1745 CIS Planter (Russian Edition) - PC61321745 - PLANTER
1745 Drawn MaxEmerge 5 Planter (Russia Edition) - PC61461745 - PLANTER
1745 Rigid Frame Planter (South America Edition) - PC61271750 - PLANTER
1750 Conservation Planter (4, 6 and 8 Row) - PC25291750 - PLANTER
1750 MaxEmerge XP Drawn Planter (for South Africa) - PC60921755 - PLANTER
1755 Conservation Planter (S.N. 760101 - 790100) - PC122361755 - PLANTER
1755 Planter (4, 6 and 8 Row)(S.N. 790101- ) - PC62051755 - PLANTER
1755 Planter (8 Row)(Mexico Edition) - PC61561755 - PLANTER
1755 Planter (South Africa Edition) - PC61357000 - PLANTER
7000 Flex-Fold Planter - PC20158-ROW WIDE - PLANTER
7200 (12-Row, 8-Row Wide and 12-Row Narrow) Flex-Fold MAXEMERGE 2 Planter - PC204612-ROW NARROW - PLANTER
7200 (12-Row, 8-Row Wide and 12-Row Narrow) Flex-Fold MAXEMERGE 2 Planter - PC204612-ROW - PLANTER
7200 (12-Row, 8-Row Wide and 12-Row Narrow) Flex-Fold MAXEMERGE 2 Planter - PC20467200 - PLANTER
7200 (12-Row, 8-Row Wide and 12-Row Narrow) Flex-Fold MAXEMERGE 2 Planter - PC20464-ROW WIDE - PLANTER
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter - PC20436-ROW NARROW - PLANTER
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter - PC20438-ROW NARROW - PLANTER
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter - PC20436-ROW WIDE - PLANTER
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter - PC20434-ROW - PLANTER
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter - PC20437200 - PLANTER
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter - PC20436-ROW - PLANTER
7200 Drawn Standard (4-Row and 6-Row) MAXEMERGE 2 Planter - PC20777200 - PLANTER
7200 Drawn Standard (4-Row and 6-Row) MAXEMERGE 2 Planter - PC20774-ROW - PLANTER
7200 Drawn Standard (4-Row and 6-Row) MAXEMERGE 2 Planter - PC207712-ROW - PLANTER
7200 Rigid-Fold MAXEMERGE 2 Drawn Conservation Planter (12-Row) (North American Edition) - PC23247200 - PLANTER
7200 Rigid-Fold MAXEMERGE 2 Drawn Conservation Planter (12-Row) (North American Edition) - PC23247200 - PLANTER
7200 Wing-Fold Drawn (8-Row Wide and 12-Row Narrow) MAXEMERGE 2 Planter (North American Edition) - PC228912-ROW NARROW - PLANTER
7200 Wing-Fold Drawn (8-Row Wide and 12-Row Narrow) MAXEMERGE 2 Planter (North American Edition) - PC22898-ROW WIDE - PLANTER
7200 Wing-Fold Drawn (8-Row Wide and 12-Row Narrow) MAXEMERGE 2 Planter (North American Edition) - PC22897300 - PLANTER
7300 Integral MAXEMERGE 2 Planter - PC20477300 - PLANTER
7300 Stack-Fold MAXEMERGE 2 Integral Planter - PC237112-ROW NARROW - PLANTER
7300 Vertical-Fold (8-Row Wide and 12-Row Narrow) Integral MAXEMERGE 2 Planter - PC20488-ROW WIDE - PLANTER
7300 Vertical-Fold (8-Row Wide and 12-Row Narrow) Integral MAXEMERGE 2 Planter - PC20487300 - PLANTER
7300 Vertical-Fold (8-Row Wide and 12-Row Narrow) Integral MAXEMERGE 2 Planter - PC20487340 - PLANTER
7340 Integral (12-Row Narrow) MAXEMERGE 2 Planter - PC213712-ROW NARROW - PLANTER
7340 Integral (12-Row Narrow) MAXEMERGE 2 Planter - PC2137DB60 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243CCS - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243DB88 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243DB80 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243DB58 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243DB66 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243DB44 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243DB90 - PLANTER
DB Series Planter (DB44, DB58, DB60, DB66, DB80, DB88, DB90)(S.N. -755100)(North America Edition) - PC12243CCS - PLANTER
DB120 Planter (48 Row, 30-Inch Spacing)(S.N. 755101- )(North America Edition) - PC12690DB120 - PLANTER
DB120 Planter (48 Row, 30-Inch Spacing)(S.N. 755101- )(North America Edition) - PC12690XP1030 - PLANTER
XP1030 Max Planter Plus, 4 or 6 Row (Mexican Edition) - PC6094
