Product Overview

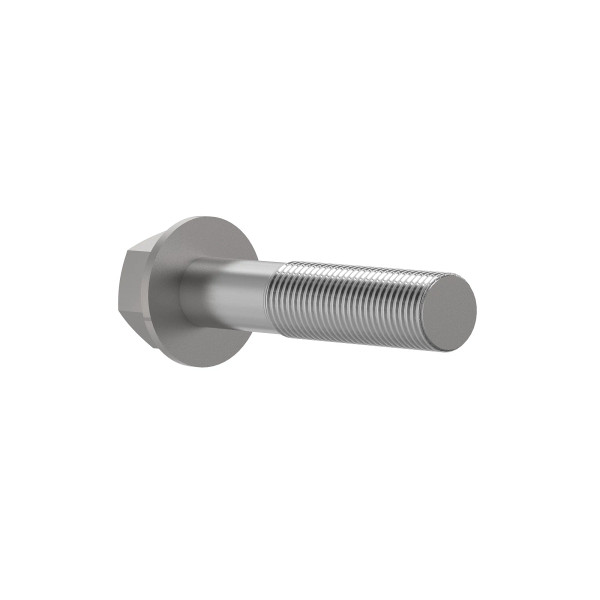

| Detailed Description: | SCREW, HEX FLANGE HEAD |
| Part Weight: | 0.086(KG) |
| Specification | |
| Diameter | 0.500 IN |
| Thread | UNC2A |
| Length | 2.500 IN |
| Thread Length | 1.250 IN |
| Flange Diameter | 1.070 IN |
| Head Height | 0.510 IN |
| Material or Grade | A17F |
| Finish | B |
| Note | |
| Specification | |
| Diameter | 12.700 MM |
| Thread | UNC2A |
| Length | 63.500 MM |
| Thread Length | 31.750 MM |
| Flange Diameter | 27.178 MM |
| Head Height | 12.954 MM |
| Material or Grade | A17F |
| Finish | B |
| Note | |
19H3778
Screw
